Visual Basic Instinct : Performance Issues with Disconnected Recordsets

Performance Issues with Disconnected Recordsets

This article will establish performance differences between disconnected and connected recordsets when using them with Microsoft Access and Microsoft SQL Server, and uncover potential pitfalls when designing your system for multi-database access.

Author: Jens G. Balchen

Introduction

In a recent project I was working on, the client wanted a database system where data would be maintained locally on his machine, and then transferred to a web server in batches. For the client application, I used Microsoft Access and a standard set of ADO routines I have developed. These routines use disconnected recordsets, since their primary use have been in transactional, server-side, stateless components. I saw no potential dangers in using disconnected recordsets in a client application.

As it turns out, there is a bug in the MFC data access library. You cannot have more than 40 fields in a recordset and at the same time perform batch updates on that recordset. Since disconnected recordsets use batch updates, this bug caused my client application to crash whenever it tried to update a record. The solution was to use connected recordsets instead, which do not require batch updates. A curious side effect to this, to our client's immense pleasure, was a significant decrease in database access times.

I decided to perform some tests on connected vs. disconnected recordsets using both Microsoft Access and Microsoft SQL Server as database servers. The test code, test results and my conclusion make out this article.

Writing the test code

The test code was kept very simple. A form containing two command buttons formed the framework, and the code beneath each button had only minor differences. The basic code looks like this:


Private Sub cmdDisconnected_Click()

Dim Connection As ADODB.Connection
Dim Rs         As ADODB.Recordset

Dim a          As Variant

Dim Opening    As SETimer
Dim Traversing As SETimer

   Set Opening = New SETimer
   Set Traversing = New SETimer

   Set Connection = New ADODB.Connection
   Set Rs = New ADODB.Recordset

   Opening.StartTimer

   ' Open a database connection using a client library cursor.
   With Connection
      .ConnectionString = "(whichever connection string you like)"
      .CursorLocation = adUseClient
      .Open
   End With

   ' Open a recordset with lots of data.
   With Rs
      .CursorType = adOpenStatic
      .LockType = adLockBatchOptimistic
      .Open "SELECT * FROM Files", Connection
   End With

   ' Disconnect recordset.
   Set Rs.ActiveConnection = Nothing

   Opening.StopTimer

   ' Close connection.
   Connection.Close
   Set Connection = Nothing

   Traversing.StartTimer

   ' Traverse entire recordset.
   Do While Not Rs.EOF
      ' Get a text (BLOB) field to increase data load.
      a = Rs("Description")
      Rs.MoveNext
   Loop

   Traversing.StopTimer

   ' Close recordset.
   Rs.Close
   Set Rs = Nothing

   txtTimes = txtTimes & Opening.TimeMS & vbTab & Traversing.TimeMS & vbCrLf

End Sub

The code for cmdConnected_Click looks the same, except for some important differences:


   ' Open a database connection using a server library cursor.
   With Connection
      .ConnectionString = "(whichever connection string you like)"
      .CursorLocation = adUseServer
      .Open
   End With

   ' Open a recordset with lots of data.
   With Rs
      .CursorType = adOpenStatic
      .LockType = adLockOptimistic
      .Open "SELECT * FROM Files", Connection
   End With

   ' The recordset isn't disconnected and the connection
   ' isn't closed before the traversing starts.

As you can see, I performed two tests -- one recorded the time used to open and populate the recordset, and one recorded the time used to traverse the entire recordset, including some basic data access. The output into txtTimes was tab-separated to ease the migration to Microsoft Excel (to do some basic graph creation).

The test results

Since both Microsoft Access and Microsoft SQL Server perform data caching, subsequent tests show little variation in data access times. However, a comparison between database servers and access methods show huge differences.

Microsoft SQL Server Access Times

Disconnected		Connected
Opening	Traversing	Opening	Traversing
94	47	16	1453
109	31	16	1453
109	32	16	1453
110	31	15	1469
109	31	16	1453
110	46	15	1438
110	47	15	1438
109	47	0	1438
109	32	0	1454
110	46	15	1438
110	31	0	1453
109	31	16	1437
109	32	16	1437
125	31	16	1453
110	31	16	1437
109	32	15	1453
110	31	16	1453
93	32	16	1453
110	31	0	1453
125	31	0	1437
93	47	16	1453
110	31	15	1469
109	31	16	1516

These test results clearly show the advantage of disconnected recordsets with Microsoft SQL Server. In average, the basic open, traverse, and close is done 10 times faster than with connected recordsets.

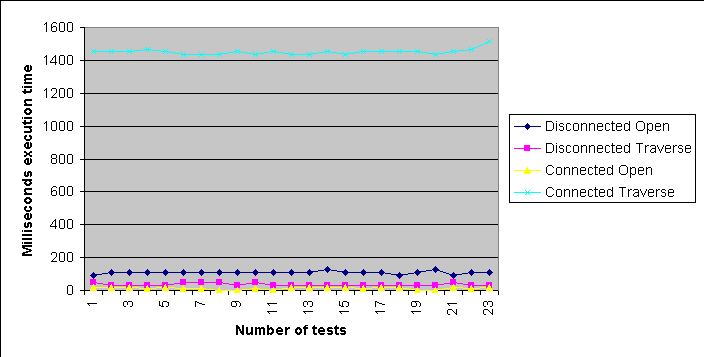

See graph.

Microsoft Access Access Times

Disconnected		Connected
Opening	Traversing	Opening	Traversing
547	31	15	79
125	31	16	78
125	31	32	78
125	31	16	78
110	31	78	78
125	32	15	78
125	32	32	78
125	31	15	78
125	31	15	79
125	32	15	79
125	31	16	78
141	32	16	78
125	32	15	78
125	31	32	78
125	31	31	78
125	32	16	78
125	31	16	78
125	31	16	93
125	31	16	78
109	31	15	78
125	31	15	94
125	32	16	78
125	31	31	78

As you can see, disconnected recordsets show a slight performance degrade with Microsoft Access, but the most important thing about these data is the significant increase in speed with connected recordsets. The access time has been reduced to 1 / 15 of the time used with Microsoft SQL Server, and is only 2 / 3 of the time used with disconnected recordsets.

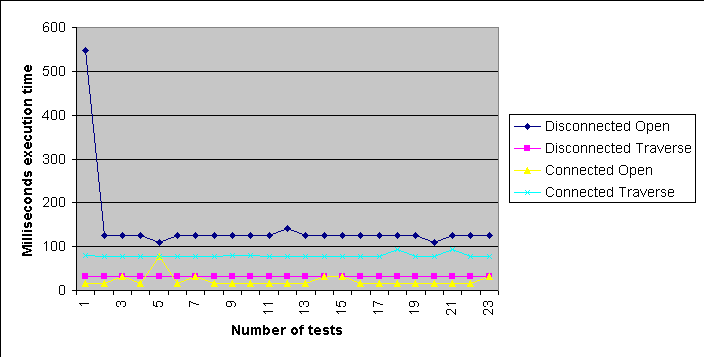

See graph.

Conclusion

Disconnected recordsets provide a fast and convenient way to access data in stateless, transactional enviroments, and work very well with Microsoft SQL Server. This simple test does not take into account factors such as cross-thread marshalling that typically apply to larger systems, but nonetheless, disconnected recordsets prove the most efficient way to access SQL Server data. Connected recordsets seem to work best with Microsoft Access. The access times are significantly reduced, and I suspect the decrease will be even larger when the recordset contains more fields.

When you write applications meant to run with both database servers, give this topic some consideration. If you chose the wrong kind of data access, your application could suffer from slow access times.
